Intelligent control system, easy and convenient to operate

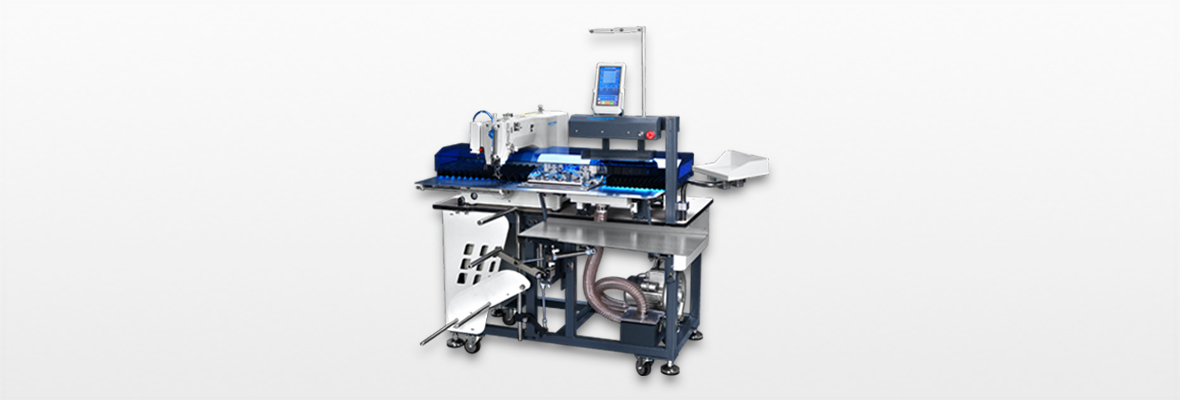

NS-2212N-FP PRODUCT FEATURES

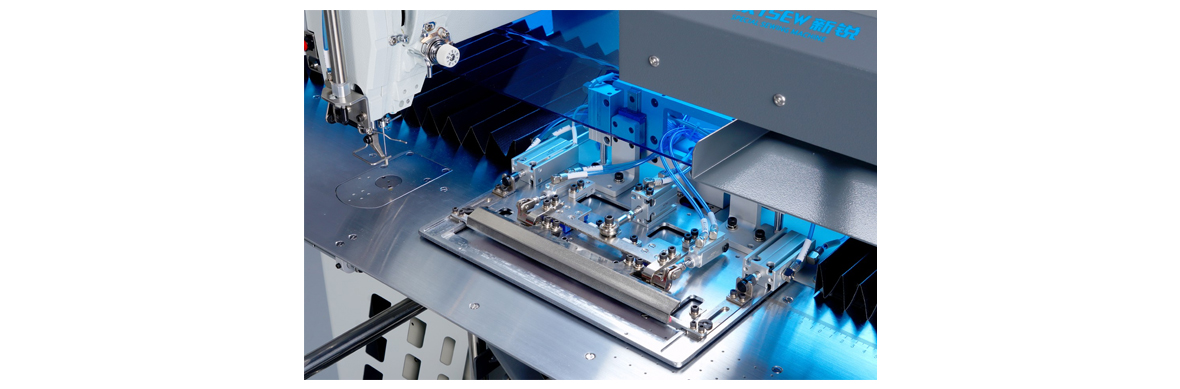

1.The positioning of the laser light is easy to adjust through the screw, and the material is placed more accurately.
2.The lower pallet design is adopted, which is not easy to be moved when feeding, and the sewing is more accurate.
3.The left and right cutter functions, and the alignment is accurate.
4.The touch screen generates patterns with one key, which is easy to operate.
NS-2212N-FP Application Example
SPECIFICATIONS
Machine type
NS-2212N-FP
Machine Head
Electonic Pattern Machine
Stitches
Single Lockstitch
Needle Type
DPx17(9#-16#)
Feeding device
Intermittent feeding(pulse motor drive)
Stitches distance
0.05-12.7mm
Max.sewing speed
2800rpm
Max.length of pocket
220 mm(L)
Production Efficiency
（depends on fabric size）
Motor
AC-servo motor 750W
Peak power
550W
Power supply
Single phase 220V
Air pressure
0.5Mpa
Package size
(L)1280 mm*（W）1000 mm*（H）1400 mm
Weight
222kg
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
